360 Rotary High Speed Cylinder Inkjet UV Printer for Bottles, Cups & Cans
Product Overview
This high-performance 360-degree rotary UV printer delivers exceptional printing quality on cylindrical objects including bottles, cups, and cans with precision and speed.
Key Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes available for different printing materials with accurate colors, distinct layers, and smooth transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working periods prevents blockage from ink curing
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Nozzle Specifications |
Effective Orifice: 1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distributing and wholesaling UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers with ISO certification and strict quality control. We support OEM and ODM services with over 10 years of UV printer manufacturing experience and positive client feedback worldwide. Our products are exported to France, Germany, Vietnam, India and other countries with CE and RoHS certification.
Packaging & Shipping

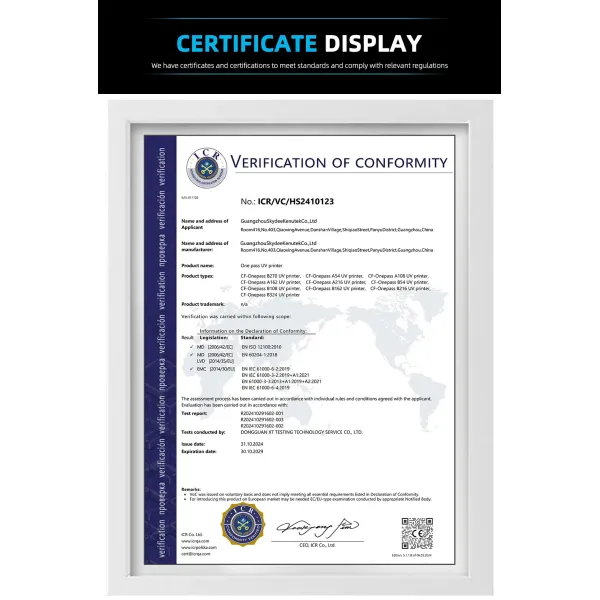

Certifications
Frequently Asked Questions
Do I need white ink and varnish ink?
White ink functionality expands printing capabilities across various media by enabling high-quality graphics on hard or soft materials like acrylic boards or backlit films. It also serves as a primer for non-white materials. Varnish enhances print brightness and extends UV ink fade resistance.
What materials can UV flatbed printers print on?
UV flatbed printers handle all flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating requirements, prevents fading and blistering, and saves significant working hours. Applications include rigid identification boards, hard cardboard, corrugated boxes, and specialty markets like custom glass, tiles, wood, and furniture decoration.
Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training until full mastery. We also offer international technical services for machine testing and repair when needed.
Regarding printer maintenance
We recommend purging ink daily when starting the printer. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Are you a factory or a foreign trade company?
We are a manufacturing factory, enabling us to provide competitively priced printers with high-quality services.
